Circuit Breakers
Circuit Breakers

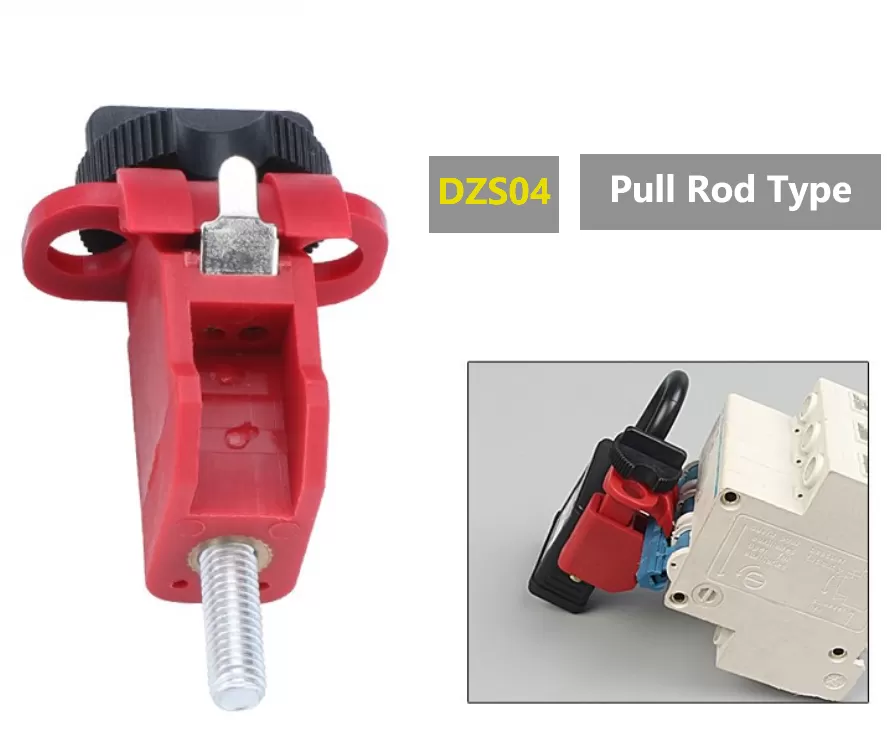

Code: DZS04
Self-locking Design,pull rod type.
Push-button mechanism for simple pin prong extension.
Suitable for both single and multi-pole breakers with a tie-bar.
Attach padlock for lockout.
Extremely simple to use: Simply switch off the MCB, push the button on the device to extend the pin prongs, and attach to the MCB before releasing the button and attaching a padlock to fully secure the lockout.
No tools required for installation; the device engages wire pins into the small holes located on either side and secures the MCB, preventing it from being energized until the lockout is removed.
Lockout device can be used on single and multi-pole breakers that are operated with a tie-bar.

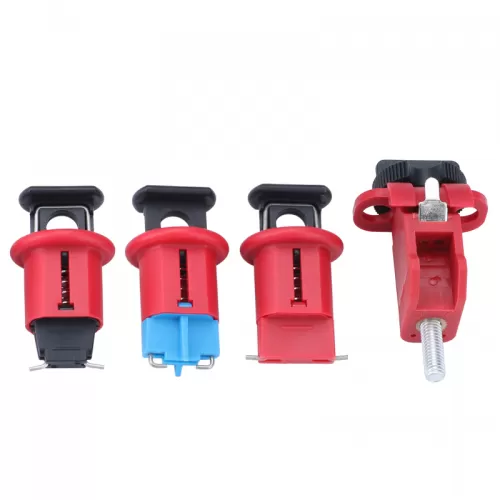

Miniature Circuit Breaker Lockout POS
a) Made of engineering plastic strengthened nylon PA.
b) Applied for most existing types of European and Asian circuit breakers.
c) Suggested to be equipped together with a padlock for added safety.
d) Easily installed, no tools needed.
e) Can take padlocks with a shackle diameter up to 9/32″ (7.5mm).
f) Available for single and multi-pole breakers.
| Model | DZS04 |
| Material | Engineering plastic strengthened nylon and PA |
| Description | No tool required |
| Lockhole Dia.Ø | 8mm |
| Clearance | ≤20MM |
